DPI

EcoDPI

EcoDPI solution is designed to analyze packages up to the application layer (Layer 7) of the OSI model. EcoDPI detects traffic from more than 3,000 different applications.

  • New functionality on the Service Gateway Engine platform;
  • Allows you to analyze traffic up to the level 7 (L7);
  • Traffic detects over 3000 applications / protocols;
  • Statistics about applications / protocols are exported to Collector in extended session logs;
  • The basic license allows to analyze data by protocols and applications;
  • In the future, functionality and corresponding licenses will be added for traffic management via protocols and applications;
  • EcoDPI able to work simultaneously with the functionality of EcoNAT, EcoFilter, EcoBRAS and EcoQoE.

EcoDPI functionality can be activated on existing devices EcoSGE after a software update.

Hardware Platforms

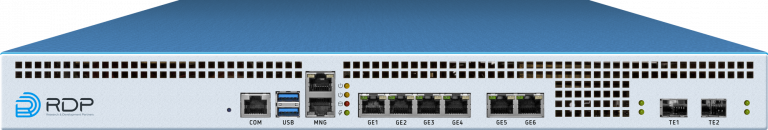

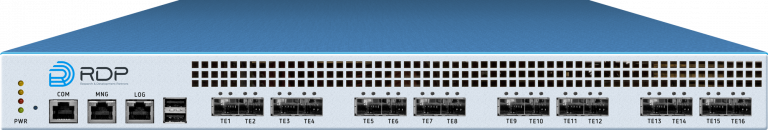

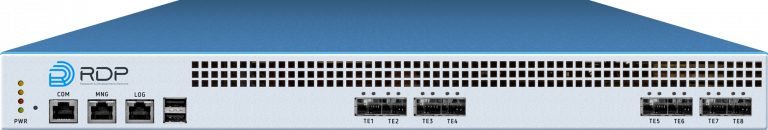

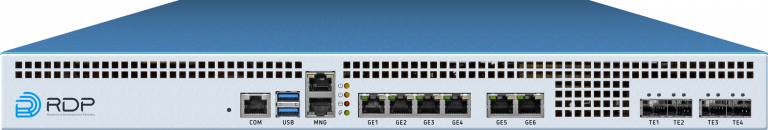

 EcoSGE 1010 / 2010 / 2020EcoSGE 2040EcoSGE 4080EcoSGE 4120 / 4160EcoSGE 5400
Platform EcoSGE 2020 EcoSGE 2040 EcoSGE 4080 EcoSGE 4160 EcoSGE 5400
Throughput*from 6 / 12 to 24 Gbps34 Gbps60 Gbps120 / 160 Gbps400 Gbps
Rack Unit (Mountable)1 U1 U1 U1 U2 U
Connection Setups Per
Second
2.3 mln2.3 mln2.5 mln5 mln10 mln
Concurrent Sessions32 mln32 mln40 mln150 mln375 mln
Network Interfaces
— 1 GE Copper66000
— 10 GE Fiber (SFP+)24812 / 160
— 100 GE Fiber (QSFP28)00004
Logging Interface1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10 GE SFP+
Management Interface1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10/100/1000BaseT1 x 10/100/1000BaseT
Console PortRJ45 (RS232C)RJ45 (RS232C)RJ45 (RS232C)RJ45 (RS232C)RJ45 (RS232C)
Data StorageCF Industrial SLCCF Industrial SLCCF Industrial SLCCF Industrial SLCCF Industrial SLC
Power Consumption (Typical / Max)140 / 170 W140 / 170 W250 / 285 W340 / 400 W550 / 600 W
Power SupplyDual 200W RPS
100-240 VAC (-36-72 DC)
Dual 200W RPS
100-240 VAC (-36-72 DC)
Dual 500W RPS
100-240 VAC (-40-72 DC)
Dual 500W RPS
100-240 VAC (-40-72 DC)
Dual 800W RPS
100-240 VAC (-40-72 DC)
CoolingStandard FansStandard FansHot Swap Smart FansHot Swap Smart FansHot Swap Smart Fans
Dimensions (W x D x H)430 x 400 x 44 mm430 x 400 x 44 mm440 x 576 x 44 mm440 x 576 x 44 mm440 x 576 x 88 mm
* Packet performance is sufficient to operate at "wire speed" with an average packet size of 480 bytes.

Free test drive and configuration

Apply and we will provide you with test equipment on your network for free.
