The EcoBNGOS supports various access lists. Access list is a set of text expressions-instructions which allows to "look inside" a frame/packet, match the text rule with a data inside a message and make decision of how to process this frame. The following access lists are supported in EcoBNGOS (short description below, read more in the relevant sections of this manual):

• Policy-filter-list;
• Filter-map;
• Prefix-list.

Policy-filter-list is used to filter route policies in various protocols of unicast and multicast routing, their promotion, redistribution, addition of special rules when processing routing information. Policy filter-lists CAN NOT be used for blocking or permit traffic to pass through the router.

Filter-map is used to block or permit traffic to pass through the router. It is also applicable in QoS, PBR and HTTP redirect scripts.

Prefix-list is similar to Policy-filter-list by functionality with the only difference, that allows the user to manage subnet masks more flexibly. These lists are widely used when configuring BRAS.

Policy-filter-list

The policy-filter-list is a feature which allows to create rule lists for filtering, redistributing, summarizing, and control of routing policies in different routing protocols.

The policy-filter-list is a variant of access list, where only the IP address and the inverse mask can be specified.
Filter lists are created in the configuration mode. There can be several rules in one filter list. The address of the network that is transmitted in the route update is indicated with a wildcard.

The syntax of rule creating and adding in policy-filter-list is: policy-filter-list <PFL_NAME> [deny | permit] <ADDRESS> <WILDCARD>.

Use the policy-filter-list <PFL_NAME> remark <DESCRIPTION> command to create description for policy-filter-list.

The policy-filter-list parameters are shown in the table below.

Distribute-list <NUMBER>

In

Out

ecorouter(config)#policy-filter-list 99 permit 172.168.1.0 0.0.0.255

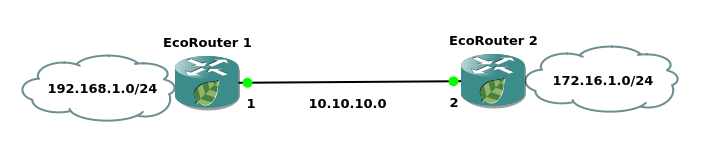

Configuring Routing Information Filtering in BGP

The filter lists to be configured in the similar way as OSPF.

policy-filter-list 99 permit 192.0.0.0 0.255.255.255

router bgp 100

network 10.1.1.0/24

network 10.2.0.0/16

network 172.64.1.0/24

network 172.64.2.0/24

network 172.64.3.0/24

network 192.1.1.0/24

network 192.1.2.0/24

network 192.2.3.0/24

network 192.128.1.0/30

network 192.129.1.0/30

neighbor 10.0.0.13

remote-as 200

neighbor 10.0.0.13 distribute-list 99 out

network 192.1.1.0/24

network 192.1.2.0/24

network 192.2.3.0/24

network 192.128.1.0/30

network 192.129.1.0/30

Configuring Routing Information Filtering in IS-IS

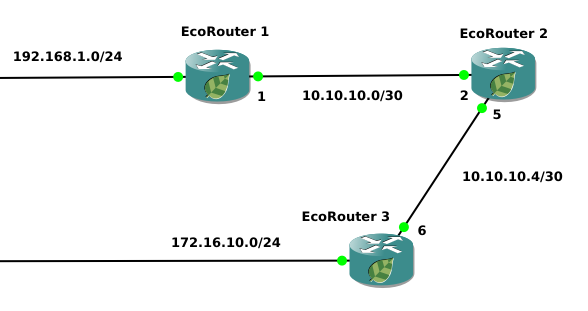

Between the routers 1, 2 and 3, dynamic routing is configured using the IS-IS protocol.

In the IS-IS protocol the filtering can be performed only during the redistribution process.

The current router configuration is shown below.

The router 1 operates on the level 1 as the router inside the zone.

EcoRouter_1#show run

router isis 1
is-type level-1
net 49.0001.0000.0000.0001.00
!
interface e2
ip mtu 1500
ip address 192.168.1.1/24
ip router isis 1
!
interface e1
ip mtu 1500
ip address 10.10.10.1/30
ip router isis 1
!
!
port te0
mtu 9728
service-instance 1
encapsulation untagged
no rewrite
connect ip interface e1

The router 2 operates on the levels 1 and 2.

EcoRouter_2#show run

router isis 1
 net 49.0001.0000.0000.0002.00

!
interface e2
 ip mtu 1500
 ip address 10.10.10.5/30
 ip router isis 1
!
interface e1
 ip mtu 1500
 ip address 10.10.10.2/30
 ip router isis 1

!
port te0
 mtu 9728
 service-instance 1
 encapsulation untagged
 no rewrite
 connect ip interface e1
!
port te1
 mtu 9728
 service-instance 1
 encapsulation untagged
 no rewrite
 connect ip interface e2

The router 3 operates only on the level 2.

EcoRouter_3#show run

router isis 1
 is-type level-2-only
 net 49.0001.0000.0000.0003.00
!
interface e2
 ip mtu 1500
 ip address 172.16.10.1/24
 ip router isis 1
!
interface e1
 ip mtu 1500
 ip address 10.10.10.6/30
 ip router isis 1
!
port te0
 mtu 9728
 service-instance 1
 encapsulation untagged
 no rewrite
 connect ip interface e1

Output of routing tables for topology.

EcoRouter_1#sh ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
      O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2
      i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
      * - candidate default

IP Route Table for VRF "default"
C       10.10.10.0/30 is directly connected, e1
i L1    10.10.10.4/30 [115/20] via 10.10.10.2, e1, 00:00:21
C       192.168.1.0/24 is directly connected, e2

EcoRouter_2#sh ip route
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

IP Route Table for VRF "default"
C       10.10.10.0/30 is directly connected, e1
C       10.10.10.4/30 is directly connected, e2
i L2    172.16.10.0/24 [115/20] via 10.10.10.6, e2, 00:00:02
i L1    192.168.1.0/24 [115/20] via 10.10.10.1, e1, 00:00:03

EcoRouter_3#sh ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

IP Route Table for VRF "default"
i L2    10.10.10.0/30 [115/20] via 10.10.10.5, e1, 00:00:09
C       10.10.10.4/30 is directly connected, e1
C       172.16.10.0/24 is directly connected, e2
i L2    192.168.1.0/24 [115/30] via 10.10.10.5, e1, 00:00:09

Creating the filter list to restrict routing updates about the network 192.168.1.0/24 from EcoRouter_1 to EcoRouter_3.

EcoRouter_3(config)#policy-filter-list 20 deny 192.168.1.0 0.0.0.255

where 20 is the filter list number,

deny is the denying argument,

192.168.1.0 0.0.0.255 is the network with the restricted routing updates.

After this, the list of filters should be placed in the router's routing context.

EcoRouter_2(config)#router isis 1

EcoRouter_2(config-router)#redistribute isis level-1 into level-2 distribute-list 20

where redistribute is the command to redistribute routes,

isis level-1 into level-2 is the argument indicating the route is taken inside the zone and is announced outside,

distribute-list 20 is the argument indicating the created filter list with a name.

This command will result the abscence of information about this network on EcoRouter 3.

EcoRouter_3#sh ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

IP Route Table for VRF "default"
i L2    10.10.10.0/30 [115/20] via 10.10.10.5, e1, 01:35:24
C       10.10.10.4/30 is directly connected, e1
C       172.16.10.0/24 is directly connected, e2

Configuring Routing Information Filtering in OSPF

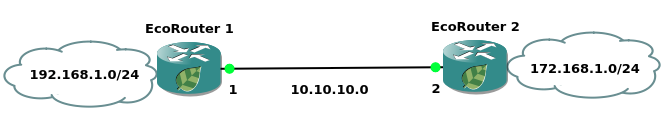

Between the routers 1 and 2 dynamic routing is configured using the OSPF protocol.

EcoRouter_1#show run

!
 router ospf 1
log-adjacency-changes
network 10.10.10.0/24 area 0.0.0.0
network 192.168.1.0/24 area 0.0.0.0
!

interface e2
ip mtu 1500
ip address 192.168.1.1/24
!
interface e1
ip mtu 1500
ip address 10.10.10.1/24
!

port te0
mtu 9728
service-instance 1
 encapsulation untagged
 no rewrite
 connect ip interface e1

EcoRouter_2#show run
!

router ospf 1
log-adjacency-changes
network 10.10.10.0/24 area 0.0.0.0
network 172.168.1.0/24 area 0.0.0.0
!
interface e2
ip mtu 1500
ip address 172.168.1.1/24
!
interface e1
ip mtu 1500
ip address 10.10.10.2/24
!
port te0
mtu 9728
service-instance 1
 encapsulation untagged
 no rewrite
 connect ip interface e1

EcoRouter_1#show ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP

      O - OSPF, IA - OSPF inter area

      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

      E1 - OSPF external type 1, E2 - OSPF external type 2

      i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

      * - candidate default




IP Route Table for VRF "default"

C       10.10.10.0/24 is directly connected, e1

O       172.168.1.0/24 [110/20] via 10.10.10.2, e1, 00:18:28

C       192.168.1.0/24 is directly connected, e2




Gateway of last resort is not set

EcoRouter_2#sh ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP

      O - OSPF, IA - OSPF inter area

      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

      E1 - OSPF external type 1, E2 - OSPF external type 2

      i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

      * - candidate default

IP Route Table for VRF "default"

C       10.10.10.0/24 is directly connected, e1

C       172.168.1.0/24 is directly connected, e2

O       192.168.1.0/24 [110/20] via 10.10.10.1, e1, 00:18:47

Gateway of last resort is not set

EcoRouter_1(config)#policy-filter-list 10 remark FilterForER2

EcoRouter_1(config)#policy-filter-list 10 deny 172.168.1.0 0.0.0.255

EcoRouter_1(config)#router ospf 1
EcoRouter_1(config-router)#distribute-list 10 in

EcoRouter_1#sh ip route
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
      O - OSPF, IA - OSPF inter area
      N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
      E1 - OSPF external type 1, E2 - OSPF external type 2
      i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
      * - candidate default

IP Route Table for VRF "default"
C       10.10.10.0/24 is directly connected, e1
C       192.168.1.0/24 is directly connected, e2

Gateway of last resort is not set

EcoRouter_1#sh ip ospf database

OSPF Router with ID (192.168.1.1) (Process ID 1 VRF default)

               Router Link States (Area 0.0.0.0)

Link ID         ADV Router       Age     Seq#       CkSum  Link count
172.168.1.1     172.168.1.1     1552     0x80000007 0x8c39 2
192.168.1.1     192.168.1.1     1556     0x80000006 0x4447 2

               Net Link States (Area 0.0.0.0)

Link ID         ADV Router       Age     Seq#       CkSum
10.10.10.1      192.168.1.1     1556     0x80000001 0x1fcd
EcoRouter_1#

Prefix-list (prefix-list)

A prefix-list is an alternative ro policy-filter lists used in many filtration commands and have a number of advantages. Prefix-lists load a CPU less what increases a router performance.

Prefix lists show commands

The show ip prefix-list <name> and show ip prefix-list summary commands display general prefix-list information. The show ip prefix-list detail <name> command displays statistics on prefix-list matching (hit count) and on application matching (route-map) where a prefix-list is used (refcount).

Prefix Lists Configuration

Prefix-lists are checked in order row by row until matching to any clause is found. Just after the matching is found a packet processing starts. By default all packets not allowed directly in the prefix-list, are denied (an implicit operator deny all for all packets having no matches).

Use the ip prefix-list command to create prefix-list. The prefix-list name must be specified after. The command supports statement enumerating what the key word seq with a number after is used for. The statement can have any number from range <1-4294967295> (the smaller is a number the earlier a statement will be checked for matching). If the first statement has a number 10 and the last one has 15 the statements with a 11, 12, 13, 14 numbers can be added into the prefix-list at any time. If in the new prefix-list the first statement's number is not specifyed manually it will be assigned automatically to 5. The following statements will be enumerated automatically with a step equal 5. To disable the auto-enumerating mode use the no ip prefix-list sequence-number command. To define the subnet which information should be transmitted about to other routers use the permit key word, to restrict use the deny key word. The whole command is following:

ip prefix-list <prefix-list-name> seq <sequense-number> (permit | deny) <subnet/mask> (ge | le | eq <value>).

Use the ip prefix-list <prefix-list-name> description <text> command to specify description (up to 80 symbols).

In addition to direct specifying a subnet and a mask, prefix-list allows to select subnets by specifying the mask's length in operators ge, le, eq. Use the ge parameter to select specific prefixes which length is bigger than specified by <value>. Use the le parameter to select specific prefixes which length is smaller than specified by <value>. Use the eq parameter to select specific prefixes which length is equal to <value>. If all the ge, le, eq key word are omitted it means that an exact matching to the prefix-list statement is required. The following example explains on a 6 specified subnets:

1. 10.0.0.0/8

2. 10.128.0.0/9

3. 10.1.1.0/24

4. 10.1.2.0/24

5. 10.128.10.4/30

6. 10.128.10.8/30

Prefix-list matching

The following command demonstrates an advertizing of subnets 10.0.0.0 with a masks from 10 to 20:

ip prefix-list TEST seq 5 permit 10.0.0.0/8 ge 10 le 20

ip prefix-list TEST seq 10 deny all

ATTENTION:

Use the no ip prefix-list <name> command to delete a specifyied prefix-list.

Filter-map

For L2 and L3 traffic filtering the filter-maps containig rules are used in EcoRouterOS.

The common logic when creating filter-map is following:

1. Creating a filter-map by the filter-map {ethernet | ipv4} <FILTER_MAP_NAME> [<SEQUENCE_NUMBER>] expression.
2. Specifiyng a rule by the match <CONDITION> expression, where <CONDITION> is a condition or conditions for packet examination (for more details, see the corresponding sections).
3. Specifying an action by the set <ACTION> expression, where <ACTION> is the action that will be performed to packages that meet the criteria from <CONDITION> (for more details, see the corresponding sections).

Depending on protocols and conditions the rules can be specified differently.

For each filter-map, the rules are checked sequentially, in the order in which they appear in the show filter-map {ipv4 | ethernet} command's output.

If there are several traffic attributes in the rule, this is equivalent to logical operation "AND", that is, the rule will be applied only if the packet satisfies all the characteristics listed in the rule.

Example:

filter-map ipv4 example01 10

match tcp 10.0.0.0/24 eq 40 any eq 179 not-rst syn ack

set discard

This filtermap named example01 blocks TCP packets with source IP addresses (10.0.0.0-10.0.0.255) and port 40 to any destination IP address with port 179, which contains the SYN and ACK flags and does not contain RST flag.

To implement the logical operation "OR", several rules must be created. Then the rule will apply to the packet, the conditions of which the packet satisfies.

For example if any TCP packet which contains the SYN and ACK or packet which contains FIN should be allowed to pass the list must contain the following lines:

filter-map ipv4 example2 10

match tcp any any syn ack

match tcp any any fin

set accept

At the end of each access list there is an implicit rule that prohibits everything that is not allowed in this access list: any any discard.

Сonfiguring L2 filter-map

Another type of filter-map in EcoRouterOS is the filter-map ethernet, which allows to filter frames by the field value in the L2 header.

The filter-map ethernet differs by specific rule strucure: the source and destination MAC addresses, MAC wildcard masks and ethertype field values (optional) should be specified in the rule.

Filter-map ethernet is created in the configuration mode. Several rules can exist for one action.

The syntax for rule creating and adding into filter-map ethernet require to specify the following parameters:

• the name and the sequence value of имя filter-map ethernet - <FILTER_MAP_ETHERNET_LIST> [<SEQUENCE_NUMBER>];
• the rule - match {<SOURCE_MAC> <SRC_WILDCARD> | any | host <SOURCE_MAC>} {<DESTINATION_MAC> <DST_WILDCARD> | any | host <DESTINATION_MAC>} [<ETHERTYPE>];
• the action - set {accept | discard | port <PORTNAME>}.

The filter-map ethernet parameters are described in the table below.

Each filter-map ethernet contain the last implicit prohibiting rule any any reject.

After the filter-map ethernet is created, rules are added, and action is specified it can be assigned to the service instance with a direction indication. In this case direction means the moment when packets passing through the interface will be processed by the filter-map ethernet: for filter-map ethernet only one direction is available, in - at the "input" to the interface. Multiple filter-map ethernet can be applied on one interface.

Use the set  filter-map in <FILTER_MAP_ETHERNET_LIST> [<SEQUENCE>] command in the service instance context mode to assign the filter-map ethernet to service instance.

Example of filter-map ethernet configuration

The goal is to prohibit the arp-request from the client with address 0000.0000.000c.

ecorouter(config)#filter-map ethernet primer 10

ecorouter(filter-map-ethernet)#match host 0000.0000.000c any 0x806
ecorouter(filter-map-ethernet)#set discard
ecorouter(filter-map-ethernet)#ex
ecorouter(config)#filter-map ethernet primer 15
ecorouter(filter-map-ethernet)#match 0000.0000.0010 ffff.ffff.ff00 any
ecorouter(filter-map-ethernet)#set port ge0
ecorouter(filter-map-ethernet)#ex
ecorouter(config)#filter-map ethernet primer 20
ecorouter(filter-map-ethernet)#match any any
ecorouter(filter-map-ethernet)#set accept
ecorouter(filter-map-ethernet)#ex

The 0x806 value corresponds to the arp protocol. The "filter-map ethernet primer 20" allows all other traffic. Without this rule, the any any discard rule would be applied.

ecorouter(config)#port te0

ecorouter(config-port)#service-instance 1

ecorouter(config-service-instance)#set filter-map in primer 10

ecorouter(config-service-instance)#set filter-map in primer 15

ecorouter(config-service-instance)#set filter-map in primer 20

Сonfiguring L3 filter-map

Filter-maps are used to control the both-direction traffic through L3 interface. Direction in this case means the moment when the packets passing through the interface are processed by the filter-map: at the "input" of the interface - direction "in", at "exit" - the direction "out". Multiple filter-maps can be applied to the same interface in one direction. Each filter-map can be applied to several interfaces simultaneously.

There're two steps in filter-map use.

1. Creating filter-map and adding rules into it.
2. Binding filter-map to interface.

Filter-map can be created in configuration mode. Do the following steps to create filter-map (as a result the filter-map including one rule will be created):

1. First line. Enter the filter-map ipv4 <FILTER_MAP_NAME> [<SEQUENCE_NUMBER>] command where <FILTER_MAP_NAME> is filter-map name, <SEQUENCE_NUMBER> is the. The parameters described in the table below.
2. Second line. Specify the match <PROTOCOL> <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>] [<FLAG>] rule that the packets will be checked against. The parameters described in the table below.
3. Third line. Specify an action that will be applied to packages that meet the conditions of the rule, by set <ACTION>. The parameters described in the table below.

Each filter-map can contain multiple rules. Follow the steps described above to add the rule into filter-map. Specify the <FILTER_MAP_NAME> of the filter-map where the rule should be added. The rule must have a unique <SEQUENCE> number within the same filter-map.

At the end of any filter-map ipv4 the implicite prohibiting rule any any reject is built in.

The common parameters of filter-map are described in the table below.

When specifying the udp protocol, the second line of the filter-map creation command will look like this: match udp <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>]..

The additional parameters related to the udp protocol are shown in the table below.

When specifying the tcp protocol, the second line of the filter-map creation command will look like this: match tcp <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>] [<FLAG>].

The additional parameters related to the tcp protocol are shown in the table below.

Example of filter-map creation and rule adding into it

The filter-map is created in configuration mode:

ecorouter(config)#filter-map ipv4 example 10

match udp 10.10.10.0/24 20.20.20.0/24 eq 22

set accept

Here:

• example – filter-map name,
• 10 - rule execution priority number in the filter-map,
• udp – protocol,
• 10.10.10.0/24 – source net where traffic is allowed from,
• 20.20.20.0/24 – destination net where traffic is allowed to,
• eq 22 – argument indicating the exact destination port number,
• accept – permitting argument (traffic that meets the conditions of the rule is allowed to pass through).

Adding a rule to this filter-map (for packets that match the rule, the accept action will also be executed, the rule will be applied the second in the filter-map named example). The rule adds a condition for verification. The action for the entire list is the same. The rules within the filter-map are checked in accordance with its <SEQUENCE> values.

ecorouter(config)#filter-map ipv4 example 20

match 1 host 192.168.1.15 host 172.20.100.1

Here:

• example – filter-map name,
• 20 - rule execution priority number in the filter-map,
• 1 – protocol, in this case ICMP,
• host 122.168.1.15 – exact source IP address where traffic is allowed from (the mask is not requiered here),
• host 172.20.100.1 – exact destination IP address where traffic is allowed to (the mask is not requiered here).

Adding a rule to this filter-map (for packets that match the rule, the accept action will also be executed, the rule will be applied the third in the filter-map named example).

ecorouter(config)#filter-map ipv4 example 30

match ospf 192.168.32.0 0.0.7.255 any

Здесь:

• example – filter-map name,
• 30 - rule execution priority number in the filter-map,
• ospf – the protocol name,
• 192.168.32.0 0.0.7.255 – source net specified by IP address and wildcard mask,
• any - destination network, all the IP addresses.

Displaing filter-map

Use the show filter-map ipv4 command to display existing L3 filter-maps. It displays only filter-maps without their interface bindings.

ecorouter#show filter-map ipv4

 Filter map example

  Filter 10

  match udp 10.10.10.0/24 20.20.20.0/24 eq 22

  match 1 host 192.168.1.15 host 172.20.100.1

  match ospf 192.168.32.0 0.0.7.255 any

  set accept

 Filter map TEST

  Filter 20

  match any host 10.210.10.151 any

  set accept

Use the set filter-map {in | out} <FILTER_MAP_NAME> [<SEQUENCE>] command in the context interface configuration mode to bind the filter-map to the specific interface. Multiple filter-maps can be bound to the one interface. In this case the <SEQUENCE> parameter is specified for each filter-map separately (not for the rules included!). All interface-bound filter-maps will be executed in order of increasing values of its <SEQUENCE>. The implicit "discard all" rule will be placed after the rules from all the bound filter-maps.

Example of filter-map binding to the interface

ecorouter(config)#interface e20

ecorouter(config-if)#set filter-map in example 10

ecorouter(config-if)#set filter-map out TEST 20

If the <SEQUENCE> value is not specified while binding the filter-list to the interface, then for each filter-map it is assigned automatically with an increment of 10.

The same filter-list can be assigned to multiple interfaces simultaneously.

Up to 64 thousand filter-maps can be created in EcoRouterOS. However, there is a limit for the number of "active" filter-map instances, that is, assigned to the L3 interface. A maximum of 64 assignements for filter-maps to interfaces can be configured. This restriction does not depend on the number of created filter-maps or interfaces.

Management of filter-maps can be carried out both from the main router, and from virtual routers. The filter-maps of the virtual router will be valid only within virtual router, and filter-maps of the main router, respectively, only within the main router.

Use the show counters interface <INTERFACE_NAME> filter-map {in | out} command to display filter-maps bound to the interface.

show counters interface e20 filter-map out

Interface e20

 Filter map TEST

 Filter 10 [0 packets]

    match any host 10.210.10.151 any

    set accept

Show L2 filter-map commands

Use the

show filter-map ethernet [<FILTER_NAME>]

Example:

ecorouter#show filter-map ethernet

 Filter map FILTER

  Filter 10

    match host 0000.0000.0001 host 0000.0000.0004

    match host 0000.0000.0001 any 0x806

    set accept

 Filter map test

  Filter 10

    match host 0000.0000.0001 any 0x806

    set discard

ecorouter#show filter-map ethernet FILTER

 Filter map FILTER

  Filter 10

    match host 0000.0000.0001 host 0000.0000.0004

    match host 0000.0000.0001 any 0x806

    set accept

Show counters information

Use the

show counters port <NAME> filter-map {in | out}

The command parameters are shown in the table below.

<NAME>

The counters information displayed for each filter-map block and not for each rule.

Example:

ecorouter#show counters port te0 filter-map in

Service instance 1

  Filter map FILTER

   Filter 10 [5 packets]

     match host 0000.0000.0001 host 0000.0000.0004

     match host 0000.0000.0001 any 0x806

     set accept

   Filter 20 [6 packets]

     match host 0000.0000.0002 any

     set discard

Use the show port <NAME> command in administration mode to display filter-maps binded to specific port where <NAME> is the port name.

Example:

ecorouter#show port te0

 10 Gigabit Ethernet [none] port te0 is up

  MTU: 9728

  LACP priority: 32767

  Input packets 13, bytes 3308, errors 0

  Output packets 10, bytes 1340, errors 0

   Service instance te0.1 is up

    ingress encapsulation untagged

    ingress rewrite none

    egress encapsulation untagged

    egress none

    Connect bridge test symmetric

    filter-map in FILTER

    Input packets 13, bytes 3308

    Output packets 10, bytes 1340

Show L3 filter-map commands

Use the show filter-map ipv4 command in administration mode to display all the L3 access lists.

ecorouter#show filter-map ipv4

Filter map NAME
 Filter 10
 match any any any
 set discard

Filter map TEST
 Filter 10
 match any host 10.210.10.151 any
 set accept

Use the show filter-map ipv4 <NAME> command to display the specific L3 access list.

ecorouter#show filter-map ipv4 TEST
Filter map TEST

 Filter 10
 match any host 10.210.10.151 any
 set accept

Use the show counters interface <NAME> filter-map {in | out} command to display all the L3 access lists assigned to the specific interface.

ecorouter#show counters interface EXAMPLE filter-map in

Interface EXAMPLE
 Filter map TEST
 Filter 10 [0 packets]
 match any any any
 set discard

Policy configuration for subscriber session

The subscriber-policy is used to filter traffic in subscriber session. Up to 10 such policies can be set for one session. The traffic will be subsequently processed by each poliicy in accordance with its sequence number.

Use the subscriber-policy <NAME> command in configuration mode to create subscriber-policy where the <NAME> is the name of the entity created.

ecorouter(config)#subscriber-policy ?

  SUBSCRIBER_POLICY Subscriber policy name

After the subscriber-policy is created its context configuration mode is automatically entered.

ecorouter(config)#subscriber-policy subspolname

ecorouter(config-sub-policy)#

The subscriber-poliicy parameters are shown in the table below.

<BANDWIDTH>

<DESCRIPTION>

For each subscriber-policy 2 separate prosessing rules (filter-map policy) can be set: one for incoming (in) traffic) and one for outgoing (out) traffic. If no filter-map policy is set for direction the corresponding traffic will not be processed by this policy, and there will be no changes in this traffic. Attention: without specifying the limitations in filter-map policy and assignement it to the same direction for subscriber-policy the traffic will not be limited to the bandwidth specified.

Use the set filter-map {in | out} <NAME> command in subscriber-policy context configuration mode to set the filter-map policy to traffic direction where <NAME> is filter-map policy name.

The example of subscriber-policy configuration (in this example is assumed that the filter-map policy with the name FMPname is already created and configured; creating and configuring filter-map policy are described below).

ecorouter(config)#subscriber-policy subspolname

ecorouter(config-sub-policy)#description Testsubscrpolicy

ecorouter(config-sub-policy)#bandwidth in 200

ecorouter(config-sub-policy)#set filter-map in FMPname

Filter-map policy creating and configuring

Use the filter-map policy ipv4 <NAME> command in configuration mode to create filter-map policy where <NAME> is the filter-map policy name.

ecorouter(config)#filter-map policy ipv4 ?

 FILTER_MAP_POLICY_IPV4 Filter map name

After the filter-map policy is created its context configuration mode is automatically entered.

ecorouter(config)#filter-map policy ipv4 FMPname

ecorouter(config-filter-map-policy-ipv4)#

Do the following steps to configure filter-map policy (as a result in the filter-map policy one rule will be created):

1. First line. Enter the filter-map policy ipv4 <FILTER_MAP_NAME> [<SEQUENCE_NUMBER>] command where <FILTER_MAP_NAME> is filter-map name, <SEQUENCE_NUMBER> is the. The parameters described in the table below.
2. Second line. Specify the match <PROTOCOL> <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>] [<FLAG>] rule that the packets will be checked against. The parameters described in the table below.
3. Third line. Specify an action that will be applied to packages that meet the conditions of the rule, by set <ACTION>. The parameters described in the table below.

Each filter-map can contain multiple rules. Follow the steps described above to add the rule into filter-map. Specify the <FILTER_MAP_NAME> of the filter-map where the rule should be added. The rule must have a unique <SEQUENCE> number within the same filter-map policy.

The common parameters of filter-map policy are described in the table below.

When specifying the udp protocol, the second line of the filter-map creation command will look like this: match udp <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>].

The additional parameters related to the udp protocol are shown in the table below.

When specifying the tcp protocol, the second line of the filter-map creation command will look like this: match tcp <SRC_ADDRESS> [<PORT_CONDITION>] <DST_ADDRESS> [<PORT_CONDITION>] [dscp <DSCPVALUE>] [<FLAG>].

The additional parameters related to the tcp protocol are shown in the table below.

Address for redirection specifying

ecorouter(config)#redirect-url SITEREDIRECT

ecorouter(config-redirect-url)#url http://forredirect.org

Example of configuration for traffic processing in subscriber session

In this example the static IPoE is configured.

As a result of the following settings, all incoming traffic of icmp type will be discarded at the input, incoming udp-traffic will be limited to 20 Mbps, incoming tcp-traffic will be skipped unchanged (by using filter-map policy named NAME1).

The outgoing traffic will be limited to 5 Mbps (by using filter-map policy named NAME2), outgoing tcp-traffic of port 80 will be redirected to the http://forredirect.org.

!

filter-map policy ipv4 NAME1 10
 match icmp any any
 set discard
filter-map policy ipv4 NAME1 20
 match udp any any
 set accept
filter-map policy ipv4 NAME2 10

 match tcp any any eq 80
 set redirect SITEREDIRECT

filter-map policy ipv4 NAME2 20
 match any any any
 set accept

!
subscriber-policy NAME
 bandwith in 20
 set filter-map in NAME1 10
 bandwith out 5
 set filter-map out NAME2 10
!
subscriber-service NAME
 set policy NAME
!
ip prefix-list NAME seq 5 permit 10.10.10.100/32 eq 32
!
subscriber-map NAME 10
 match static prefix-list NAME
 set service NAME
!
interface ipoe.1
 ip mtu 1500
 ip address 10.10.10.1/24
