The MPLS Layer-3 VPN solution provides address space and routing separation via the use of per-VPN Routing and Forwarding tables (VRFs), and MPLS switching in the core and at the edge of the network. VPN customer routing data is imported into the VRFs utilizing the Route Target BGP extended community. This routing data is identified by a Route Distinguisher (RD) and is distributed among Provider Edge (PE) routers using Multi-Protocol BGP extensions.

Requirements

To fully implement the EcoRouterOS MPLS Layer-3 VPN solution, the following protocols are used:

• MP-BGP
• LDP
• MPLS
• OSPFv2
• RIP

MPLS VPN Terminology

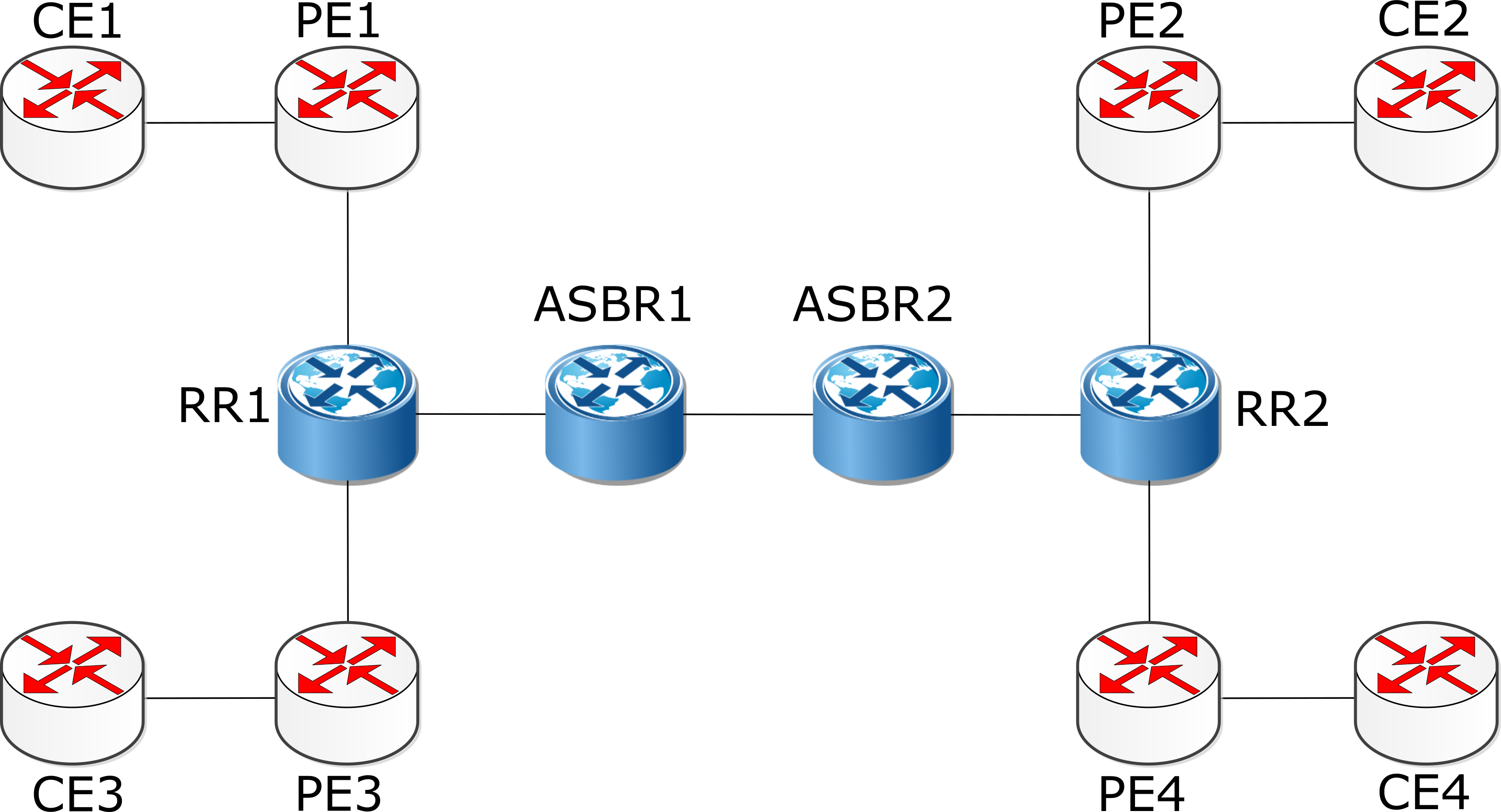

The following illustrates a Virtual Private Network in a Connector Service Provider Network with the private virtual subnets ComA and ComB. This illustration corresponds to the terms defined in this subsection.

Service Provider. The organization that owns the infrastructure that provides leased lines to customers, offering them.
a Virtual Private Network Service. In the above illustration, CConnect is the service provider providing services to clients ComA and ComB.
Customer Edge (CE) Router. A router at a customer's site connected to the Service Provider network. The CE1, CE2, CE3 and CE4 are such CE routers (see the figure).
Provider Edge (PE) Router. A provider's router which CE router is connected to. In the illustration above, PE1 and PE2 are the PE routers, they link the customer equipment to the Connector network.
Provider Core Router (P). All the Connector network routers which are not PE routers. In the above illustration, the P router which is a part of the Connector network and is not connected to any customer, is the Provider Core Router.
Customer Router (R). All the customer network routers which are not CE routers. In the illustration above, R1 and R2 are the Customer routers, and are not directly connected to the Connector network.
Site. A contiguous part of the customer network. A site connects to the provider network through transmission lines, . using a CE and PE router. In the above illustration, R1, R2 and CE3 comprise a Customer network, and are seen as a single site by the CConnect network.

The VPN Routing Process

The EcoRouterOS MPLS-VPN Routing process follows these steps:

1. Service Providers provide VPN services from PE routers that communicate directly with CE routers via an Ethernet Link.
2. Each PE router maintains a Routing and Forwarding table (VRF) for each customer. This guarantees isolation, and allows the usage of uncoordinated private addresses. When a packet is received from the CE, the VRF that is mapped to that site is used to determine the routing for the data. If a PE has multiple connections to the same site, a single VRF is mapped to all of those connections.
3. After the PE router learns of the IP prefix, it converts it into a VPN-IPv4 prefix by prepending it with an 8-byte Route Distinguisher (RD). The RD ensures that even if two customers have the same address, two separate routes to that address can be maintained. These VPN-IPv4 addresses are exchanged between the PE routers through MP-BGP.
4. A unique Router ID (usually the loopback address) is used to allocate a label, and enable VPN packet forwarding across the backbone.
5. Based on routing information stored in the VRF table, packets are forwarded to their destination using MPLS. Each PE router allocates a unique label to every route in each VRF (even if they have the same next hop), and propagates these labels, together with 12-byte VPN-IPv4 addresses, through Multi-Protocol BGP.
6. Ingress PE routers prepend a two-level label stack to the VPN packet, which is forwarded across the Provider network. This label stack contains a BGP-specific label from the VRF table (associated with the incoming interface), specifying the BGP next hop (so called service label) and an LDP-specific label from the global FTN table, specifying the IP next hop (so called transport label).
7. The Provider router in the network switches the VPN packet, based on the top label or the LDP-specific label in the stack (transport level). This top label is used as the key to lookup in the incoming interface's Incoming Labels Mapping table (ILM). If there is an outbound label, the label is swapped, and the packet is forwarded to the next hop; if not, the router is the penultimate router, and it pops the LDP-specific label, and forwards the packet with only the BGP-specific label to the egress PE router. In case the mpls explicit-null option is enabled, the penultimate router forwards the packet with the both labels but the top label value set to 0.
8. The egress PE router pops the BGP-specific label, performs a single label lookup in the outbound interface, and sends the packet to the appropriate CE router.

Configure MPLS Layer-3 VPN

The MPLS Layer-3 VPN configuration process can be divided into the following steps.

1. Establish connection between PE routers.
2. Configure PE1 and PE2 as iBGP neighbors.
3. Create VRF.
4. Associate interfaces to VRFs.
5. Configure VRF Route Destination and Route Targets.
6. Configure CE neighbor for the VPN.
7. Verify the MPLS to VPN configuration.

Topology

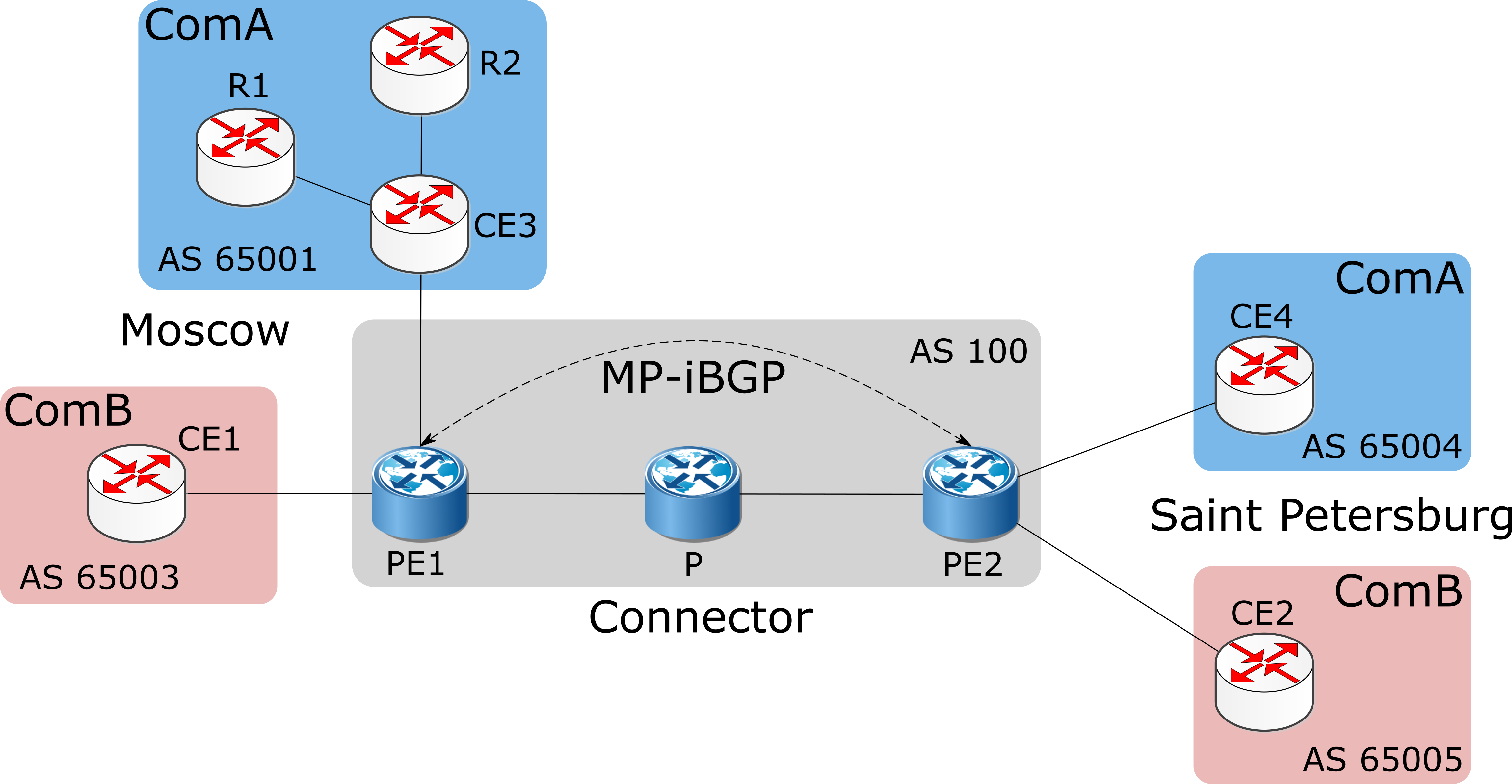

In this example, the Connector MPLS-VPN backbone has two customers — ComA and ComB. Both customers have sites in Moscow and Saint Petersburg. The following topology shows BGP4 address assignment between PE and CE routers. The steps that follow provision a customer VPN service across the MPLS-VPN backbone.

To establish this connection involves three steps:

Enable Label Switching

This is a sample configuration to enable label switching for the Labeled Switched Path (LSP) between PE1 and PE2.

PE1

PE1(config)#interface e1

PE1(config-if)#ip address 10.10.12.10/24

PE1(config-if)#label-switching

PE1(config-if)#ex

PE1(config)#port te1

PE1(config-port)#service-instance se1

PE1(config-service-instance)#encapsulation untagged

PE1(config-service-instance)#connect ip interface e1

P

P(config)#interface e1

P(config-if)#ip address 10.10.12.50/24

P(config-if)#label-switching

P(config-if)#ex

P(config)#port te1

P(config-port)#service-instance se1

P(config-service-instance)#encapsulation untagged

P(config-service-instance)#connect ip interface e1

P(config-service-instance)#ex

P(config-port)#ex

P(config)#interface e2

P(config-if)#ip address 10.10.13.50/24

P(config-if)#label-switching

P(config-if)#ex

P(config)#port te2

P(config-port)#service-instance se2

P(config-service-instance)#encapsulation untagged

P(config-service-instance)#connect ip interface e2

PE2

PE2(config)#interface e2

PE2(config-if)#ip address 10.10.13.10/24

PE2(config-if)#label-switching

PE2(config-if)#ex

PE2(config)#port te2

PE2(config-port)#service-instance se2

PE2(config-service-instance)#encapsulation untagged

PE2(config-service-instance)#connect ip interface e2

Enable IGP

What follows is a sample configuration to establish connections between the two Provider Edge routers PE1 and PE2.
Note: For details about OSPF commands, refer to the Open Shortest Path First Command Reference.

PE1

PE1(config)#router ospf 100

PE1(config-router)#network 10.10.12.0/24 area 0

P

P(config)#router ospf 100

P(config-router)#network 10.10.12.0/24 area 0

P(config-router)#network 10.10.13.0/24 area 0

PE2

PE2(config)#router ospf 100

PE2(config-router)#network 10.10.13.0/24 area 0

Enable Label Switching Protocol

Label switching protocols are used to set up a Label-Switched Path (LSP) between PE routers. EcoRouterOS supports LDP for label switching.

The example of configuration for LSP enabling on the whole path between PE1 and PE2 is shown below.
Note: For details about the commands, see the Label Distribution Protocol Command Reference.

PE1

PE1(config)#interface loopback.0

PE1(config-lo)#ip address 2.2.2.2/32

PE1(config-lo)#ex

PE1(config)#router ldp

PE1(config-router)#exit

PE1(config)#interface e1

PE1(config-if)#ldp enable ipv4

PE1(config-if)#ex

PE1(config)#router ldp

PE1(config-router)#advertisement-mode downstream-on-demand

PE1(config-router)#multicast-hellos

P

P(config)#interface e1

P(config-if)#ldp enable ipv4

P(config-if)#ex

P(config)#interface e2

P(config-if)#ldp enable ipv4

P(config-if)#ex

P(config)#router ldp

P(config-router)#advertisement-mode downstream-on-demand

P(config-router)#multicast-hellos

PE2

PE2(config)#interface loopback.0

PE2(config-lo)#ip address 3.3.3.3/32

PE2(config-lo)#ex

PE2(config)#router ldp

PE2(config-router)#exit

PE2(config)#interface e2

PE2(config-if)#ldp enable ipv4

PE2(config-if)#ex

PE2(config)#router ldp

PE2(config-router)#advertisement-mode downstream-on-demand

PE2(config-router)#multicast-hellos

Configure PEs as BGP Neighbors

BGP is the preferred protocol to transport VPN routes because of its multiprotocol capability and its scalability. Its ability to exchange information between indirectly connected routers supports keeping VPN routing information out of the Provider (P) routers. The P routers carry information as an optional BGP attribute. Additional attributes are transparently forwarded by any P router. The MPLS-VPN forwarding model does not require the P routers to make routing decisions based on VPN addressesю They forward packets based on the label value attached to the packet. The P routers do not require a VPN configuration in order to carry this information.
Note:For details about BGP commands, refer to the Border Gateway Protocol Command Reference.

PE1

PE1(config)#router bgp 100

PE1(config-router)#neighbor 3.3.3.3 remote-as 100

PE1(config-router)#neighbor 3.3.3.3 update-source 2.2.2.2

PE1(config-router)#address-family vpnv4 unicast

PE1(config-router-af)#neighbor 3.3.3.3 activate

PE2

P2(config)#router bgp 100

P2(config-router)#neighbor 2.2.2.2 remote-as 100

P2(config-router)#neighbor 2.2.2.2 update-source 3.3.3.3

P2(config-router)#address-family vpnv4 unicast

P2(config-router-af)#neighbor 2.2.2.2 activate

Create VRF

Each PE router in the MPLS-VPN backbone is connected to sites that are part of the virtual private networks of the customers. For each site, the routes of the corresponding VPN network are used. Therefore, the PE router must contain VRF tables for those VPN networks to which it is connected. In this example, these are both VPN networks.

Use the ip vrf <VRF_NAME> command in configuration mode to create the VRF table. On each PE router, VRF tables named ComA and ComB must be created. When this command is executed, a VRF RIB (Routing Information Base) routing table is created, VRF-ID assigned and the console switches to the context VRF configuration mode.

PE1(config)#ip vrf ComB

PE1(config-vrf)#

Associate Interfaces to VRFs

After the VRFs are defined on the PE router, the PE router needs to recognize which interfaces belong to which VRF. The VRF is populated with routes from connected sites. More than one interface can belong to the same VRF. To associate the interfaces (connected to the CE routers) to the VRFs, use the ip vrf forwarding <VRF_NAME> command in the context interface configuration mode.

In the following example, interface e2 of the PE1 router is associated with the VRF named ComB.

PE1(config)#interface e2

PE1(config-if)#ip vrf forwarding ComB

Configure VRF-RD and Route Targets

After the VRF is created, configure Router Distinguishers and Route Targets.

Configure Route Distinguishers

Route Distinguishers (RDs) make all customer routes unique. Thus, in the case of identical routes in different VPN networks, MP-BGP will perceive them as unique. For this, a prefix of 64 bits (RD) length is added to each IPv4 address from the virtual network, converting it into the VPN-IPv4 format. BGP considers two IPv4 addresses with different RD to be unique (incomparable), even if they have the same address and mask.

RD consists of the autonomous system serial number and the assigned number (ASN:nn), or the IP address and the assigned number (IP:nn), separated by the colon symbol ':'.

Use the <ASN:nn | IP:nn> command in context VRF configuration mode to specify RD for each VRF table on the PE-router.

In the example below the RD is specified for VRF ComB on the PE1 router.

PE1(config)#ip vrf ComB

PE1(config-vrf)#rd 168.12.2.1:1

Use the show ip route vrf <VRF_NAME> command in administration mode to display routing table for specific VRF or the how ip route vrf all command in administration mode to display routing table for all VRF.

Configure Route Targets

Any routes learned from customers are advertised across the network through Multi-Protocol BGP, and any routes learned through Multi-Protocol BGP are added into the appropriate VRFs. The route target helps PE routers identify which VRFs should receive the routes. Use the route-target {both | export | import} <ASN:nn | IP:nn> command in the context VRF configuration mode to assign RT for each VRF on PE-router.

The route-target command creates the import and export lists of extended community attributes (including RT) for VRF. RT identifies the target VPN network. This command must be entered separately for each community. All routes with the specified extended community attributes are imported into all VRFs belonging to the same communities as the destination import route.

The policy of route announcement export is configured by the route-target command:

• export - add RT to export VRF route information;
• import - import route information with specified RT;
• both - specify both import and export.

These policies are specified depending on the planned network topology. For example, setting the same value for an export and import policy for all VRF tables of a particular VPN leads to a fully-connected topology - each site can send packets directly to the site in which the destination network is located.

The example below demostrate an RT assignement for VRF ComB on the PE1 router. For other routers and networks, the same export policy value is specified.

PE1(config)#ip vrf ComB

PE1(config-vrf)#route-target both 100:1

Configure CE Neighbor for the VPN (Using BGP / OSPF / RIP)

To provide a VPN service, the PE-routers must be configured so that any routing information learned from a VPN customer interface can be associated with a particular VRF. This is achieved using any standard routing protocol process (RIP, OSPF, BGP or static routes etc). Use the appropriate of the following configurations (BGP, OSPF or RIP) to configure the CE neighbor.
BGP
The BGP sessions between PE and CE routers can carry different types of routes (VPN-IPv4, IPv4 routes). Address families are used to control the type of BGP session. Configure a BGP address family for each VRF on the PE-router, and a separate address family to carry VPN-IPv4 routes between PE routers. All non-VPN BGP neighbors are defined using the IPv4 address mode. Each VPN BGP neighbor is defined under its associated Address Family mode. Use the address-family ipv4 vrf <VRF_NAME> command in context BGP configuration mode to specify the address family. A separate address family entry is used for every VRF, and each address family entry can have multiple CE routers within the VRF.

The PE and CE routers must be directly connected for BGP4 sessions; BGP multihop is not supported between PE and CE routers.
The following example places the router in address family mode, and specifies customer company names, ComA and ComB, as the names of the VRF instance to associate with subsequent IPv4 address family configuration mode commands. This configuration is used when BGP is used for PE and CE.

PE1

PE1(config)#router bgp 100

PE1(config-router)#address-family ipv4 vrf ComA

PE1(config-router-af)#neighbor 192.16.3.3 remote-as 65001

PE1(config-router-af)#exit

PE1(config-router)#address-family ipv4 vrf ComB

PE1(config-router-af)#neighbor 168.12.0.2 remote-as 65003

OSPF
Unlike BGP and RIP, OSPF does not run different routing contexts within one process. Thus, for running OSPF between the PE and CE routers, configure a separate OSPF process for each VRF that receives VPN routes through OSPF. The PE router distinguishes routers belonging to a specific VRF, by associating a particular customer interface to a specific VRF and to a particular OSPF process.
To redistribute VRF OSPF routes into BGP, redistribute OSPF under the BGP VRF address family submode.

PE1

PE1(config)#router ospf 101 ComA

PE1(config-router)#network 192.16.3.0/24 area 0

PE1(config-router)#redistribute bgp

PE1(config-router)#ex

PE1(config)#router ospf 102 ComB

PE1(config-router)#network 192.12.0.0/24 area 0

PE1(config-router)#redistribute bgp

PE1

PE1(config)#router bgp 100

PE1(config-router)#address-family ipv4 vrf ComA

PE1(config-router-af)#redistribute ospf

PE1(config-router-af)#ex

PE1(config-router)#address-family ipv4 vrf ComB

PE1(config-router-af)#redistribute ospf

Verify the MPLS-VPN Configuration

Use the show ip bgp neighbor command in administration mode to validate the neighbor session between the CE and the PE routers. Use the show ip bgp vpnv4 all command to display all the VRFs and the routes associated with them. The following is sample output for the show running-config command for the PE1, CE1 and P routers displaying the complete configuration (based on the topology in the diagram above).
Note: In this example, OSPF was used to configure the PE to CE link.

PE1

PE1#show running-config

!
hostname PE1
!
ip vrf management
!
ip vrf ComA
 rd 168.12.2.1:1
 route-target both 100:1
!
ip vrf ComB
 rd 192.16.2.1:1
 route-target both 100:1
!
mpls propagate-ttl
!
!
ip pim register-rp-reachability
!
router ldp
 targeted-peer ipv4 10.10.21.50
  exit-targeted-peer-mode
 advertisement-mode downstream-on-demand
!
router ospf 100
 network 10.10.12.0/24 area 0.0.0.0
!
router ospf 101 ComA
 redistribute bgp
 network 192.16.3.0/24 area 0.0.0.0
!
router ospf 102 ComB
 redistribute bgp
 network 192.12.0.0/24 area 0.0.0.0
!
router bgp 100
 neighbor 3.3.3.3 remote-as 100
 neighbor 3.3.3.3 update-source 2.2.2.2
 address-family vpnv4 unicast
 neighbor 3.3.3.3 activate
 exit-address-family

!

address-family ipv4 vrf ComA

redistribute ospf
exit-address-family

!

address-family ipv4 vrf ComB

redistribute ospf

exit-address-family

!
interface loopback.0
 ip mtu 1500
 ip address 2.2.2.2/32
!
interface e1
 ip mtu 1500
 label-switching connect port te1 service-instance se1
 ip address 10.10.21.10/24
 ldp enable ipv4
!
interface e2
 ip mtu 1500
 ip vrf forwarding ComB
!
interface e3
 ip mtu 1500
 ip vrf forwarding ComA
!

P

!

hostname P

!

ip vrf management

!

mpls propagate-ttl

!

!

ip pim register-rp-reachability

!

router ldp

 pw-status-tlv

 advertisement-mode downstream-on-demand

!

interface e1

 ip mtu 1500

 label-switching

 connect port te1 service-instance se1

 ip address 10.10.21.50/24

 enable-ldp ipv4

!

interface e2

 ip mtu 1500

 label-switching

 connect port te1 service-instance se1

 ip address 10.10.13.50/24

 enable-ldp ipv4

!

end

This chapter contains configuration examples to support Virtual Private Networks (VPN) between Provider-Edge (PE) routers when they are in different Autonomous Systems (AS) using an eBGP connection.
VPN capability is extended to incorporate scenarios in which the PE routers are in different Autonomous Systems. In all cases, the connection between the PE routers is maintained using eBGP connection. EBGP-VPNs are not allowed by default.

PE to ASBR to ASBRs Using eBGP

In this example, eBGP is configured between Customer Edge (CE) and PE routers. The PE routers have an iBGP connection with Autonomous System Border Routers (ASBRs). The ASBRs are connected to each other using eBGP.

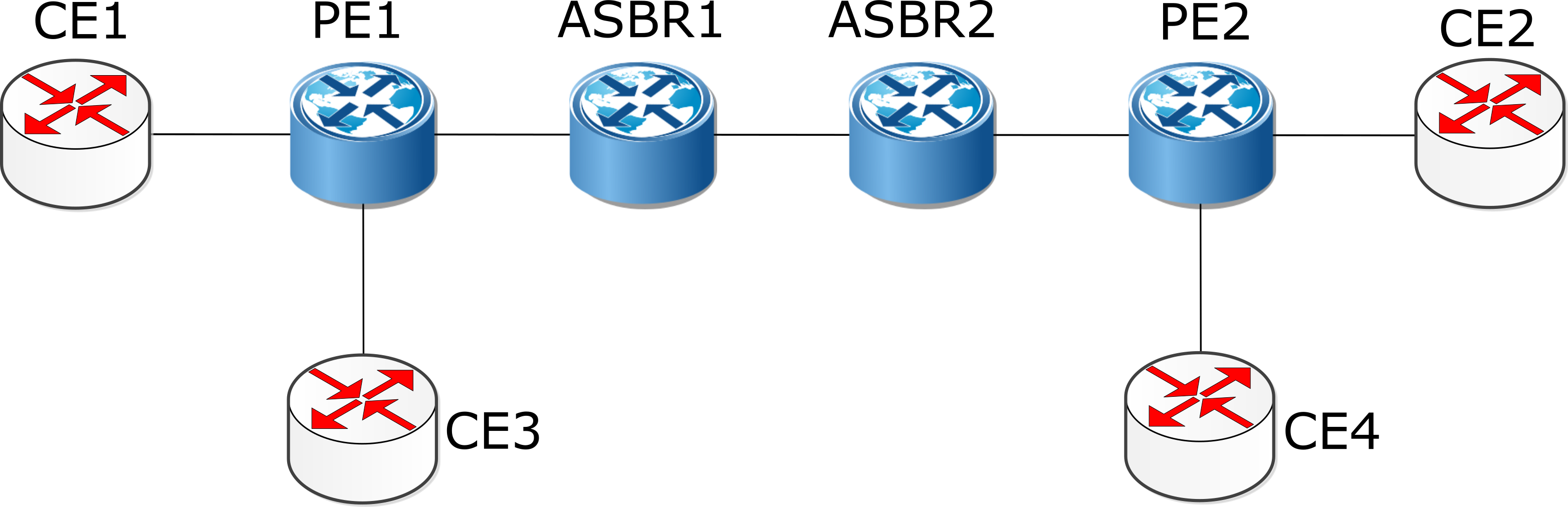

Topology

Configure other CE routers, PE routers, and ASBR according to the topology.

CEs

#configure terminal

(config)#interface eth1

(config-if)#ip address 172.6.7.117/24

(config-if)#exit

(config)#router bgp 65001

(config-router)#neighbor 172.6.7.116 remote-
 as 1

Validation show ip bgp neighbors, show ip bgp

PEs

#configure terminal

(config)#ip vrf IPI

(config-vrf)#rd 1:100

(config-vrf)#route-target both 100:200

(config-vrf)#exit

(config)#interface eth3

(config-if)#ip vrf forwarding IPI

(config-if)#ip address 172.6.7.116/24

(config-if)#exit

(config)#router bgp 1

(config-router)#neighbor 172.5.6.115 remote-
 as 1

(config-router)#address-family vpnv4 unicast

(config-router-af)#neighbor 172.5.6.115
 activate

(config-router-af)#exit-address-family

(config-router)#address-family ipv4 vrf IPI

(config-router-af)#neighbor 172.6.7.117
 remote-as 65001

(config-router-af)#exit-address-family

(config-router)#exit

Validation show ip bgp neighbors, show ip bgp vpnv4 all

ABSR1 and ASBR2

#configure terminal

(config)#ip vrf IPI

(config-vrf)#rd 1:100

(config-vrf)#route-target both 100:200

(config-vrf)#exit

(config)#interface eth1

(config-if)#ip address 172.5.6.115/24

(config-if)#exit

(config)#router bgp 1

(config-router)#neighbor 172.5.6.116 remote-
 as 1

(config-router)#neighbor 172.4.5.114 remote-
 as 2

(config-router)#address-family vpnv4 unicast

(config-router-af)#neighbor 172.5.6.116
 activate

(config-router-af)#neighbor 172.4.5.114
 allow-ebgp-vpn

(config-router-af)#neighbor 172.4.5.114
 activate

(config-router-af)#exit-address-family

(config-router)#exit

Validation show ip bgp neighbors, show ip bgp vpnv4 all

PE to RR with ASBR to ASBRs by eBGP

In this example, a PE router is connected to a Route-Reflector (RR), one of whose client is an ASBR connected to other ASBRs by eBGP. This configuration is same as the scenario above (PE to ASBR to ASBRs Using eBGP), except the PE routers are clients of an RR, one of whose numerous clients is an ASBR. The ASBRs are now connected to each other using eBGP.

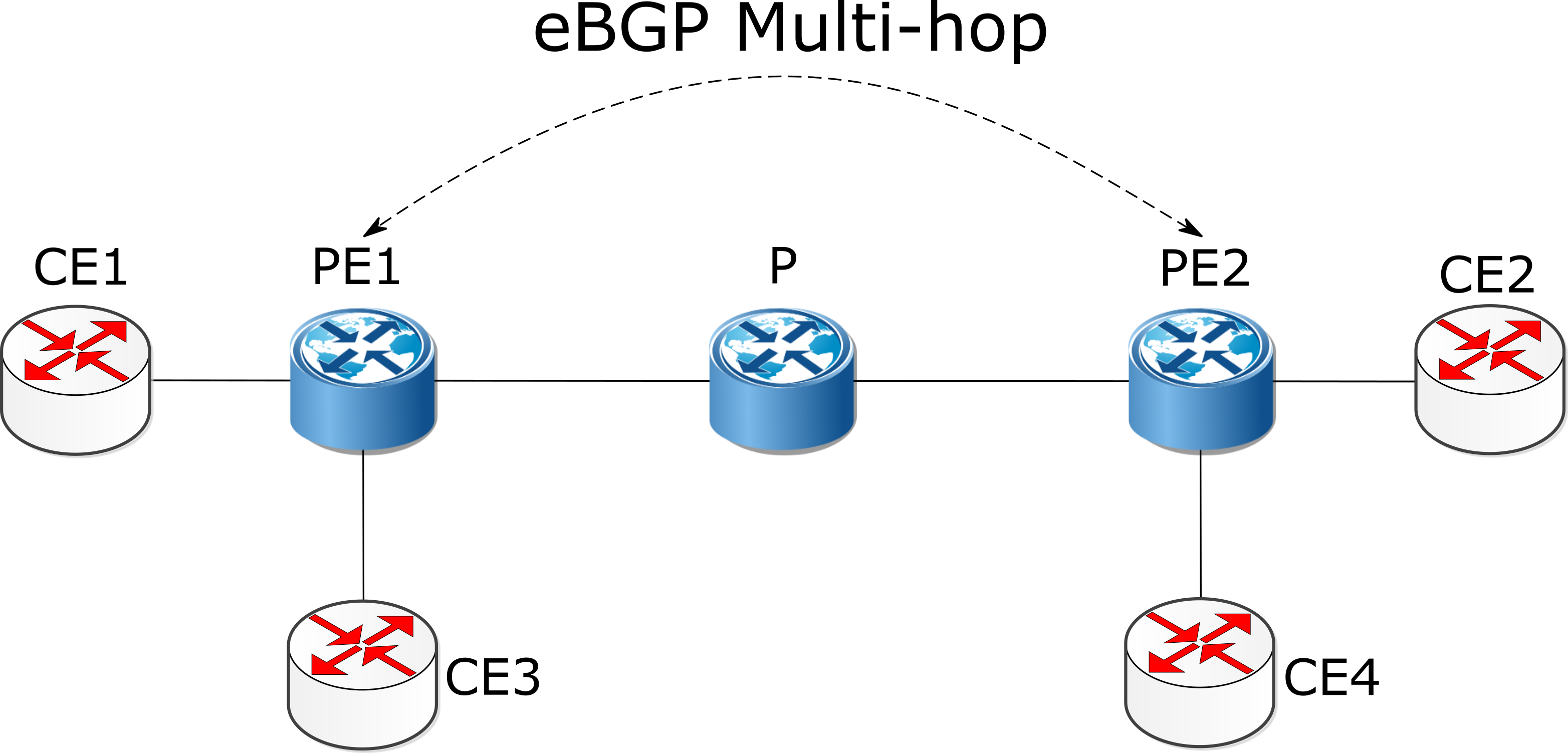

Topology

Configure other CE routers, PE routers, RR, and ASBR according to the topology.

CE Routers

Use the same steps as in PE to ASBR to ASBRs Using eBGP.

PE Routers

Use the same steps as in PE to ASBR to ASBRs Using eBGP, except that the RR is configured as an iGBP peer, instead of the ASBR.

Route Reflectors

#configure terminal

(config)#ip vrf IPI

(config-vrf)#rd 1:100

(config-vrf)#route-target both 100:200

(config-vrf)#exit

(config)#interface eth1

(config-if)#ip address 172.4.5.114/24

(config-if)#exit

(config)#router bgp 1

(config-router)#neighbor 172.5.6.116 remote-
 as 1

(config-router)#neighbor 172.4.5.114 remote-
 as 1

(config-router)#address-family vpnv4 unicast

(config-router-af)#neighbor 172.5.6.116
 activate

(config-router-af)#neighbor 172.5.6.116
 route-reflector-client

(config-router-af)#neighbor 172.4.5.114
 activate

(config-router-af)#neighbor 172.4.5.114
 route-reflector-client

(config-router-af)#exit-address-family

(config-router)#exit

 ASBRs

Use the same configuration steps as in PE to ASBR to ASBRs Using eBGP, except that the ASBR is configured as an iGBP peer, instead of an RR.

Validation show ip bgp neighbors, show ip bgp vpnv4 all

Connect PEs Using eBGP multi-hop

In this example, PE routers are directly connected to each other using an eBGP multi-hop connection.
EBGP is configured between CE-PE routers. PE routers are configured to have an eBGP multi-hop connection between them. To make the multi-hop connection work, an IGP protocol must be run between PE1-P-PE2.

Topology

Configure other CE and PE routers according to the topology. The P routers should only have an IGP protocol (OSPF, in this case) configuration.

CE Routers

#configure terminal

(config)#interface eth1

(config-if)#ip address 172.6.7.117/24

(config-if)#exit

(config)#router bgp 65001

(config-router)#neighbor 172.6.7.116 remote-
 as 1

Validation show ip bgp neighbors, show ip bgp

PE Routers

#configure terminal

(config)#ip vrf IPI

(config-vrf)#rd 1:100

(config-vrf)#route-target both 100:200

(config-vrf)#exit

(config)#interface eth3

(config-if)#ip vrf forwarding IPI

(config-if)#ip address 172.6.7.116/24

(config-if)#exit

(config)#router ospf 1

(config-router)#network 172.5.6.0/24 area 0

(config-router)#exit

(config)#router bgp 1

(config-router)#neighbor 172.4.5.114 remote-
 as 2

(config-router)#neighbor 172.4.5.114 ebgp-
 multi-hop 255

(config-router)#address-family vpnv4 unicast

(config-router-af)#neighbor 172.4.5.114
 allow-ebgp-vpn

(config-router-af)#neighbor 172.4.5.114
 activate

(config-router-af)#exit-address-family

(config-router)#address-family ipv4 vrf IPI

(config-router-af)#neighbor 172.6.7.117
 remote-as 65001

(config-router-af)#exit-address-family

(config-router)#exit

Validation show ip bgp neighbors, show ip bgp vpnv4 all

Connect PEs to RRs to RRs Using eBGP multi-hop

In this example, PE routers are connected to Route-Reflectors (RRs), which are connected to other RRs using an eBGP-multi-hop connection.
This configuration is same as the previous scenario (Connect PEs Using eBGP multi-hop), except the PE routers are connected to RRs using an iBGP connection. EBGP multi-hop connections are present between the RRs only.

Topology

Configure the CE routers, PE routers, and RRs according to the topology. The P routers should only have an IGP protocol (OSPF, in this case) configuration.

CE Routers

Same as the scenario for Connect PEs Using eBGP multi-hop.

PE Routers

Same as the scenario for Connect PEs Using eBGP multi-hop, except PE routers have only iBGP connections with the RR.

Route Reflectors

#configure terminal

(config)#ip vrf IPI

(config-vrf)#rd 1:100

(config-vrf)#route-target both 100:200

(config-vrf)#exit

(config)#interface eth1

(config-if)#ip address 172.5.6.115/24

(config-if)#exit

(config)#router bgp 1

(config-router)#neighbor 172.5.6.116 remote-
 as 1

(config-router)#neighbor 172.3.4.113 remote-
 as 2

(config-router)#neighbor 172.3.4.113 ebgp-
 multi-hop 255

(config-router)#address-family vpnv4 unicast

(config-router-af)#neighbor 172.3.4.113
 allow-ebgp-vpn

(config-router-af)#neighbor 72.3.4.113
 activate

(config-router-af)#neighbor 172.5.6.116
 activate

(config-router-af)#neighbor 172.5.6.116
 route-reflector-client

(config-router-af)#exit-address-family

(config-router)#exit

(config)#router ospf 1

(config-router)#network 172.4.5.0/24 area 0

(config-router)#exit

Validation show ip bgp neighbors, show ip bgp vpnv4 all
