The concept of pools

EcoNAT main configuration element are the so-called pools, characterized by a type of translations and a set of external (global) IPv4 address. Each pool is assigned its priority. The smaller the numerical value of the priority, the earlier the pool is processed. Each pool is associated with an ACL, which contains the selection criteria for a given pool depending on the content fields of the received IP packet.

NOTE: You should not assign the same priority to several pools! This will lead that only the one pool, which was created first, will be used. The rest of the pools will be ignored.

General settings

In the system nat_defaults configuration branch there are common settings and system settings that are applied by default to all newly created pools (timeouts_inactivity and limits_peruser blocks are copied to the pool when it is created). Description of the parameters of this configuration branch is shown in the table below.

Tcp_session_timeout, udp_session_timeout, icmp_session_timeout parameters triggered in the occasion when the translation is created and the first session appears. All other sessions will be created with the same parameters from timeouts_inactivity section (copied automatically from system nat_defaults).

Vlan_mode parameter may have the values: untagged, vlan, qinq. Where, untagged means that EcoNAT will process    only untagged traffic, untagged and with one label – vlan, untagged, with one or two tags – qinq.

By default (untagged parameter value), EcoNAT passes transparently all traffic that are different from the standard IP, in order to smoothly transmit traffic on protocols such as BFD, OSPF, BGP, and so on. In particular, IP-packets with options (except for fragmented IP-packages with options), and also, tagged traffic are passed also without NAT.

If vlan mode is activated, EcoNAT will see label in the L2 header, look in to it and redirect the IP in accordance with the existing rules with the same label. Thus IP addresses under different labels should not overlap, because EcoNAT will see it as the same user. For example, if the packet comes with the IP address 192.168.1.100 and Tagged VLAN 100 and comes the packet with IP address 192.168.1.100 and Tagged VLAN 200, in fact it will be different users, but for EcoNAT, it will be the same address of the user. Therefore, the traffic may be disrupted.

To clear the translation table, use the clear sessions all command.

MyEcoNAT:1# clear sessions all

Sessions table purged

Translation table purged

Creating a pool

To create a pool, use the create pool <pool name> command. This creates a CGNAT pool with typical parameters (more about CGNAT pools, see paragraph 6.2.5) and named poolPOOL_NAME (prefixed «pool»). If the specified pool name already starts with the prefix «pool», eg, «pooltest», the name does not change, and in the future, this pool will be located in a pools configuration branch named pooltest. When you try to create a pool with an existing name, the pool will not be created. For example, if after changing the pooltest settings you try to create the pool named «test» (which will be automatically changed to «pooltest»), pooltest configuration will not be changed, and the new pool will not be created.

Then the values of pool parameters may be changed by going to the branch of a configuration tree corresponding to this pool (for details see the section Configurations).

EXAMPLE:

MyEcoNAT:1:# create pool test

MyEcoNAT:2:# goto pooltest

MyEcoNAT:3:pools.pooltest# show

 type cgnat

 enable

 acl none

 priority 100

 global_ip ( )

 port_range 1024:65535

 hairpin on

 connection_logging on

 randomize_ports off

 timeouts_inactivity

 {

  translation 86400

  udp 300

  icmp 60

  tcp_handshake 4

  tcp_active 300

  tcp_final 240

  tcp_reset 4

  tcp_session_active 120

  udp_session 120

  icmp_session 120

  other 300

  special 600

  special_tcp_ports ( )

}

 limits_peruser

 {

  portlimit_icmp 1024

  portlimit_tcp 1024

  portlimit_udp 1024

 }

As you can see in example, the ACL bindings is not performed when you are creating a new pool.

Pool parameters are described in the table below.

These options are available depending on the pool type. The table below shows the parameters available for each type of pool.

After the pool is created, it needs to add a global IPv4 address, this pool will use. To do this, enter the pool edit mode using the goto <pool name> or edit <pool name> command and type the global_ip add <global IP address> command. Type the global_ip remove <global IP address> command to remove the IP address in the pool edit mode.

MyEcoNAT:4:pools.pooltest# global_ip add 200.0.2.0/24

MyEcoNAT:5:pools.pooltest# show global_ip

global_ip ( 200.0.2.0/24 )

MyEcoNAT:6:pools.pooltest#

MyEcoNAT:4:pools.pooltest# global_ip

MyEcoNAT:5:(pools.pooltest.global_ip)# (

MyEcoNAT:6:(pools.pooltest.global_ip)# 10.11.22.1

MyEcoNAT:7:(pools.pooltest.global_ip)# 2.3.4.5

MyEcoNAT:8:(pools.pooltest.global_ip)# 188.165.1.1

MyEcoNAT:9:(pools.pooltest.global_ip)# )

MyEcoNAT:10:pools.pooltest# show

  type cgnat

  enable

  acl none

  priority 100

  global_ip (

    2.3.4.5

    10.11.22.1

    188.165.1.1

  )

  port_range 1024:65535

  …

  }

MyEcoNAT:11:pools.pooltest# global_ip -=(188.165.1.1 2.3.4.5)

MyEcoNAT:12:pools.pooltest# show

  type cgnat

  enable

  acl none

  priority 100

  global_ip (

    10.11.22.1

  )

  port_range 1024:65535

  …

  }

MyEcoNAT:13:pools.pooltest# global_ip +=(

MyEcoNAT:14:(pools.pooltest.global_ip)# 188.165.1.1

MyEcoNAT:15:(pools.pooltest.global_ip)# 111.1.1.255

MyEcoNAT:16:(pools.pooltest.global_ip)# 77.7.7.7

MyEcoNAT:17:(pools.pooltest.global_ip)# )

MyEcoNAT:18:pools.pooltest# show

  type cgnat

  enable

  acl none

  priority 100

  global_ip (

    10.11.22.1

    77.7.7.7

    111.1.1.255

    188.165.1.1

  )

  port_range 1024:65535

  …

  }

MyEcoNAT:1:# analyze pooltest

# --- During processing pool 'pooltest' ----:

# No ACL associated with the pool

# use command 'use ACLNAME POOLNAME' to associate acl with a pool

MyEcoNAT:2:#

MyEcoNAT:1:# analyze pooltest

MyEcoNAT:2:#

MyEcoNAT:1:# edit pooltest

MyEcoNAT:2:pools.pooltest# disable

MyEcoNAT:1:# edit pooltest

MyEcoNAT:2:pools.pooltest# enable

Creating an ACL

After creating a pool, it is necessary to create an ACL determining which packets should be handled by that pool. Use the create acl <ACL name> command to create an ACL. This command creates an empty rule list called aclACL_NAME. Use the edit <ACL name> or goto <ACL name> command to open the rule list for editing.

The command for setting up a rule has the following syntax:
<num> <type> <protocol> <src>[~<vid>] <dst>

Optional parameters are enclosed in square brackets. Only values of the parameters are required in the command.

The table below describes all the parameters of the command.

Since the list of rules itself does not matter, it must be tied to a particular pool. The binding is done by applying use <ACL name> <pool name>.

EXAMPLE:

MyEcoNAT:1:# create acl a

MyEcoNAT:2:# goto acla

MyEcoNAT:3:acls.acla# show

acla {

}

MyEcoNAT:4:acls.acla# 10 allow ip 194.85.16.0/24 any

MyEcoNAT:5:acls.acla# show

acla {

  10 permit ip src net 194.85.16.0/24 dst any

}

MyEcoNAT:6:acls.acla# use acla pooltest

MyEcoNAT:7:acls.acla# goto pooltest

MyEcoNAT:8:pools.pooltest# show

 type cgnat

 enable

 acl acla

 priority 100

 global_ip ( )

…

Destination address is any by default.

MyEcoNAT:1:acls.acla# 10 allow ip 10.0.0.1

MyEcoNAT:2:acls.acla# show

acla {

 10 permit ip src host 10.0.0.1 dst any

}

MyEcoNAT:3:acls.acla#

MyEcoNAT:1:acls.acla# 10 allow dst 40.0.0.1

MyEcoNAT:2:acls.acla# show

acla {

 10 permit ip src any dst host 40.0.0.1

}

MyEcoNAT:3:acls.acla#

The procedure for determining the pool for the packet

When you receive a new IP packet (at the beginning of a new session), the pools are processed in the order of their priority: the priority value is smaller, the earlier this pool is processed. For example, if there are pools with the priorities of: 200, 150, 250, the first pool will be handled with priority 150.

Then will be analyzed the ACL, associated with a processed pool and the rules contained in the ACL are tested.

If the parameters of the received packet satisfy the allow rule, the packet will be processed by this pool. If the parameters of the received packet satisfy the conditions of a deny rule, then this pool will not be considered for this packet, and following pools will be considered in the priority order. If the packet does not satisfy the conditions of the current ACL rules, it examines the next rule of the pool or (if there are no rules anymore) moving on to the next pool in order of priority. If there are no more pools, the IPv4 packet will be transmitted without translation (like through the wire).

CGNAT pool

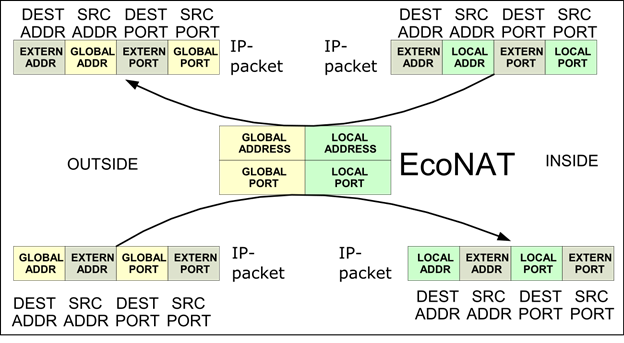

CGNAT pool provides Carrier-grade NAPT translation, in which the addresses and the ports are translated. Addresses and blocks of ports for client connections are allocated dynamically. Addresses allocation policy aims to equal ports filling of each global address. This gives the maximum benefit for the efficient use of IP addresses. Available parameters for this type of pools are represented in the table above in the section "Creating a pool".

Nat pool

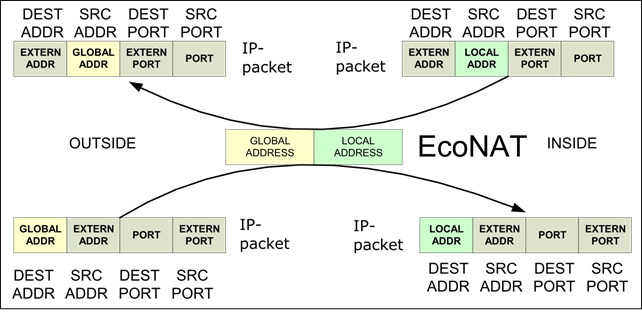

Nat pool, otherwise referred to as the basic-NAT, provides only address translation (ports are not translated). Available parameters for this type of pools are represented in the section "Creating of a new pool".

The cgnat pool type is generated by default when you are creating a pool, but you may change a pool type after its creating, assigning the corresponding value of the type parameter, located in the pool (nat for example).

Some of the parameters connected to cgnat pool disappears after changing its type to nat. Also, there a new option allow_external_connect appear, which allows outside connections. If you switch allow_external_connect to on, the translation may be established "by the initiative of" external hosts. This increases accessibility for peer-to-peer networks, as it will be able to connect from the outside at any ports to your users (unless, of course, the port is open on the host).

Usually, it makes sense to do two types of nat pool: one for those users who need connections initiated from outside (want to share torrents actively), and the other – for those customers who want to initiate connections only on their own initiative.

MyEcoNAT:1:# create pool b

MyEcoNAT:2:# goto poolb

MyEcoNAT:3:pools.poolb# type nat

MyEcoNAT:4:pools.poolb# show

type nat

enable

acl none

priority 200

global_ip ( )

hairpin on

allow_external_connect on

connection_logging on

randomize_ports off

timeouts_inactivity

 {

  translation 86400

  udp 300

  icmp 60

  tcp_handshake 4

  tcp_active 300

  tcp_final 240

  tcp_reset 4

  other 300

  special 600

  special_tcp_ports ( )

}

MyEcoNAT:5:pools.poolb#

Static pool (1_to_1)

Static pool – is a pool in which the address translation is set administratively. Available parameters for this type of pools are represented in the section "Creating of a new pool".

Each local address pool is uniquely mapped to a global address, port translation is not performed. Instead of a list of IPv4 global addresses that belong to a pool (instead of the global_ip parameter) there is a list of 1:1 translations (global_map parameter).

Translations in global_map parameter are defined as: <local address>[~vid] – <global address>. The parameter is valid for pools of type static. Vid - VLAN identifier (from 0 to 4094). Optional parameter. The vid value is prefixed with "~" (tilde) without a space after the address.

MyEcoNAT:1:# create pool c

MyEcoNAT:2:# goto poolc

MyEcoNAT:3:pools.poolc# type static

MyEcoNAT:4:pools.poolc# show

 type static

 enable

 acl none

 priority 100

 global_map ( )

 hairpin on

 allow_external_connect on

 connection_logging on

randomize_ports off

MyEcoNAT:5:pools.poolc# global_map += 192.168.0.5-200.0.0.3

MyEcoNAT:6:pools.poolc# global_map += (192.168.1.2~102-3.3.3.3)

MyEcoNAT:7:pools.poolc#

You may not specify the ACL for a static pool, in this case, it is implicitly assumed that the ammount of rules will be applied to the pool: allow ip src <local address> dst any.

If the ACL is still defined and configured, it is first checked, and then those which is implicitly assumed.

Fake pool

Fake pool type intended for handling addresses that do not need translation (for example, if you need URL filtering, but do not need NAT translation for the addresses). The use of this type of pool is described in paragraph "Configuring URL Filtering for addresses that do not fall under the NAT". Available parameters for this type of pools are represented in the section "Creating of a pool".
